| | Single-Tag Key Cabinets
 Features a steel cabinet with piano hinged door and key panels. Door mounted disc tumbler lock, keyed differently, and provided with 2 keys. Additional Lock options are available for select key cabinets and available per request. The additional lock options include Dual Control Lock (pictured on right), Combination Lock, Master-Keyed Lock, and Keyed Alike Lock. Predrilled holes inside cabinet on the back wall and mounting hardware is included for wall mounting or attachment to partition hangers. Cabinet colors are sand except where noted.
Cabinets include numbered key tags for attaching keys, a yellow "Out Key" control tag records key number, key recipient, and date when a key is loaned or issued, and a cross reference chart for key organization.
Key Cabinets including key tags, "Out Key" tags, cross reference chart and mounting hardware sold individually.
Additional and Replacement Keys are available per request.
Uni-Tag Single-Tag Key Cabinets

Key Capacity Dimensions Vault number
10 key 6 7/8"W X 6 3/4"H X 2"D KCUT10
30 key 8"W X 12 1/8"H X 2 5/8"D KCUT30
40 key 8"W X 12 1/8"H X 2 5/8"D KCUT40
60 key, Sand 10 5/8"W X 12 1/8"H X 3"D KCUT60SD
60 key, Black 10 5/8"W X 12 1/8"H X 3"D KCUT60BK
60 key, White 10 5/8"W X 12 1/8"H X 3"D KCUT60W
80 key 14"W X 17 1/8"H X 3 1/8"D KCUT80
110 key 14"W X 17 1/8"H X 3 1/8"D KCUT110
160 key 16 1/2"W X 20 1/8"H X 4 7/8"D KCUT160
200 key 16 1/2"W X 20 1/8"H X 4 7/8"D KCUT200
240 key 16 1/2"W X 20 1/8"H X 4 7/8"D KCUT240
320 key 16 1/2"W X 20 1/8"H X 4 7/8"D KCUT320
400 key 16 1/2"W X 31 1/8"H X 7"D KCUT400
500 key 16 1/2"W X 31 1/8"H X 7"D KCUT500
715 key 16 1/2"W X 31 1/8"H X 7"D KCUT715
 Uni-Tag Single-Tag Expandable Key Cabinet
Modular Key Cabinet comes with 60 key capacity with 60 numbered key tags and a register for up to 300 keys. Added 60 key panels can be purchased and easily installed at any time to expand key cabinet as your needs grow. Cabinet color is platinum. Additional and Replacement Keys are available per request.
Item Dimensions Vault number
Key Cabinet 15 7/8"W X 18 3/4"H X 3 7/8"D KCUTEXP
Key Tag Panels 11 5/8"W X 16 1/4"H X 5/16"D KCUTEXPPNL
Uni-Tag Single-Tag 40-Key Cabinet with Combination Lock
 Combination Lock mounted on door on the side in place of a key lock. Dimensions 7 3/4"W X 11 3/8"H X 3 3/8"D. Cabinet colors available in sand and black. Additional and Replacement Keys are available per request.
Color Vault number
Sand KCUTCL40SD
Black KCUTCL40BK
 Single-Tag 28-Key Hook-Style Cabinet with Combination Lock
Combination Lock mounted on the door on the side in place of a key lock. Key hook style allows keys to hang with or without key tags or hang multiple key with a key ring. Cabinet supplied with white oval tags with clips, labels and mounting hardware. Dimensions 7 3/4"W X 11 1/2"H X 3 1/4"D. Available in black and putty colors. Additional and Replacement Keys are available per request.
Color Vault number
Black KCSTCL28HBK
Putty KCSTCL28HPY
 Single-Tag 14-Key Hook-Style Key Cabinet
Door-Mounted disc tumbler lock is on side of the key cabinet. Key hook style allows keys to hang with or without key tags or hang multiple key with a key ring. Cabinet includes 14 key tags. Dimensions 7 3/4"W X 11 1/2"H X 2"D. Putty color. Additional and Replacement Keys are available per request.
Vault number KCST14H
 Single-Tag Key Ring Cabinets
Cabinet features staggered key hooks to allow oversized key storage. Available in 20 key and 40 key capacity.
Cabinet color is platinum. Additional and Replacement Keys are available per request.
Key Capacity Vault number
20 key KCKR20
40 key KCKR40
Single-Tag 24-Key Storage Box, not pictured
24-key cabinet is made of polyethylene resin which is UV resistant, colorfast and washable. Cabinet includes 24 key rings and identification tags plus a key location chart. Cabinet accepts padlock. Padlock is not included. Predrilled mounting holes in back panel with mounting hardware included. Black color. Additional and Replacement Keys are available per request.
Vault number KCST24SB
 Steelmaster Single-Tag Security Key Cabinets
Contemporary style featuring hook-style key hangers with color-coded key tags. The color-coded key tags have write-on lables for identification and organization. Steel cabinet with plastic end caps and piano hinge. Predrilled holes and mounting hardware included. Disc Tumbler Locks with 2 keys provided. Available in 30, 60, and 90 key capacities. Cabinet is Charcoal Gray color. Additional and Replacement Keys are available per request.
Key Capacity Dimensions Vault number
30 key 8 1/2"W X 11 5/8"H X 2 3/8"D KCSM30
60 key 12"W X 14 3/4"H X 2 3/8"D KCSM60
90 key 12"W X 14 3/4"H X 4 1/4"D KCSM90
 Electronic Single-Tag Key Safe
Steel Key Cabinet with Electronic, programmable, and battery-operated key pad to eliminate the needs for keys to open the key cabinet. Key pad has removable faceplate with a back-up key lock in the event of a power failure. 48 key capacity with black key tags with write-on labels included. Batteries not included. Dimensions 11 7/8"W X 17 3/4"H X 4"D. Sand color.
Vault number KSE48
  Motor Vehicle Single-Tag Key Cabinets
Motor Vehicle Key Cabinets are specially designed to hold key tags unique to the automotive industry (key tags not included). Key Cabinets are steel with full length piano hinge for full view of all keys. Key Cabinets available in 60 key and 108 key capacities. For both key cabinets, key capacity can be increased by adding up to two key panels to the cabinet. Cabinets provided with disc tumbler lock with 2 keys. Locks keyed differently. Optional Dual Control Locks, Master-Keyed Locks, Keyed-Alike Locks, and Combination Locks available per request. Cabinets in sand color. Additional and Replacement Keys are available per request.
Key Capacity Dimensions Vault number
60 key 19.5"H X 23.7"H X 7.3"D KCMV60
60 key additional panel (s) KCMV60PNL
108 key 16 1/2"W X 31 1/8"H X 5"D KCMV108
108 key additional panel (s) KCMV108PNL
Single-Tag Key Cabinet Accessories
Slotted Rack Key Tags
 Key Tags are plastic, 1 1/4"H, with nickel-chrome plated snap hooks. White Key tags available plain or with numbering. Packed per 20 key tags. Numbering available per set of 20 consecutive numbers, 1-20, 21-40, 41-60, 61-80, 81-100, 101-120, 121-140, 141-160, 161-180, 181-200, 201-220, and 221-240. Specify numbers needed for numbered key tags. Write on tags with pencil, pen, or permanent marker. Packaging available in ziplock bag or clamshell. Plain key tags are also available in an assorted colors pack. Plain colored key tags are assorted and packaged in 5 tags of 4 colors, Red, Yellow, Green, and Blue. Individual colors not available separately. Assorted colored key tags available in ziplock bag or clamshell.
 "Out Key" Control Tags
Yellow "Out Key" Control Tags are used to track loaned or in use keys. Control Tags record key number, key recipient, and date a key was removed from the key cabinet. Reusable yellow vinyl tags are packaged in 24 tags per pack.
Vault number KCOTCT
Multi-Colored Key Tags
Color-Coded key tags with write-on labels. Plastic key tags in 8 assorted colors - white, purple, blue, green, yellow, orange, red, and magenta. Packaged 4 of each of the 8 colors per pack. Multi-Colored Key Tags for Steelmaster Single-Tag Security Key Systems above
 Snap-Hook Oval Key Tags
Hook style plastic key tags are 1 1/4"H and feature nickel-chrome plated snap-hook key holders. White Key Tags available plain or with numbering. Packed per 20 key tags. Numbering available per set of 20 consecutive numbers, 1-20, 21-40, 41-60, 61-80, 81-100, 101-120, 121-140, 141-160, 161-180, 181-200, 201-220, and 221-240. Specify numbers needed for numbered key tags. Write on tags with pencil, pen, or permanent marker. Packaging available in ziplock bag. Plain key tags are also available in colors - Green, Red, Blue, Yellow, and Assorted Color pack. Packed per 20 key tags per color or assorted colors.
Two-Tag Key Cabinets

Dupli-Key Two-Tag Key Cabinets
Two-Tag system utilizes two different sets of numbered key tags to manage your keys. Attach your master keys to red octagonal-shaped, self-locking key tags to make sure they remain on the key hooks and your original key is never loaned. Fasten duplicate loaner keys to white oval-shaped, snap-hook key rings and file them on the same hook as the master key. When a loaner key is issued, insert a Receipt Slip recording the key recipient and date into a Plastic Holder, and hang the Plastic Holder with the master key. Log all issued loaner keys into the Key Loan Register to keep a written record. All cabinets include a complete set of numbered key tags, receipt slips and plastic holder, and key collection envelopes. Keep track of all important key information with the Cross Reference Index Kit (includes instructions on how to establish your two-tag key system along with 3-way Key Cross Reference System and a complete Key Loan Register).
Steel cabinet with full length piano hinges on door and key panels. Predrilled holes on cabinet back wall and mounting hardware included. Door-Mounted Disc Tumbler Lock provided with 2 keys. Locks keyed differently. Additional Lock options are available for select key cabinets and available per request. The additional lock options include Dual Control Lock (pictured on right), Combination Lock, and Master-Keyed Lock. Cabinets are sand color. Cabinets are sold individually.
Key Capacity Dimensions Vault number
30 key 8"W X 12 1/8"H X 2 1/2"D KCDK30
60 key 14"W X 17 1/2"H X 3 1/8"D KCDK60
90 key 14"W X 17 1/2"H X 3 1/8"D KCDK90
120 key 16 1/2"W X 20 1/8"H X 4 7/8"D KCDK120
180 key 16 1/2"W X 20 1/8"H X 4 7/8'D KCDK180
240 key 16 1/2"W X 20 1/8"H X 4 7/8"D KCDK240
300 key 16 1/2"W X 31 1/8"H X 5"D KCDK300
390 key 16 1/2"W X 31 1/8"H X 5"D KCDK390
460 key 16 1/2"W X 31 1/8"H X 5"D KCDK460
Two-Tag Key Cabinet Accessories
Snap-Hook Oval Key Tags
Hook style plastic key tags are 1 1/4"H and feature nickel-chrome plated snap-hook key holders. White Key Tags available plain or with numbering. Packed per 20 key tags. Numbering available per set of 20 consecutive numbers, 1-20, 21-40, 41-60, 61-80, 81-100, 101-120, 121-140, 141-160, 161-180, 181-200, 201-220, and 221-240. Specify numbers needed for numbered key tags. Write on tags with pencil, pen, or permanent marker. Packaging available in ziplock bag. Plain key tags are also available in colors - Green, Red, Blue, Yellow, and Assorted Color pack. Packed per 20 key tags per color or assorted colors.

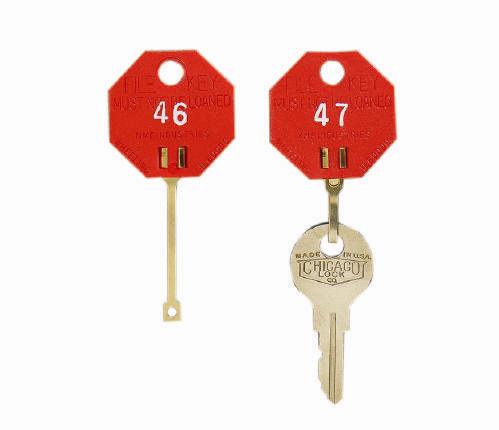

 Octagonal Self-Locking Red Key Tags
Plastic key tags, 1 1/4"H, hook-style and features a self-locking brass key holder to permanently hold original keys for Dupli-Key systems. Red Key Tags available plain or with numbering. Packed per 20 key tags. Numbering available per set of 20 consecutive numbers, 1-20, 21-40, 41-60, 61-80, 81-100, 101-120, 121-140, 141-160, 161-180, 181-200, 201-220, and 221-240. Packaging available in ziplock bag.
  Cross Reference Index Kit in a Binder and Cross Reference Index
Binder includes instructions on how to establish your Dupli-Key two-tag system along with Key Loan Register Sheets and a 3-Way Cross Reference Index System.
Cross Reference Index Register Sheets available separately. 24 sheets per pack.
Item Vault number
Binder KCCRIK
Cross Reference Index Sheets KCCRI
 Key Loan Record Sheets
Use Key Loan Register Sheets to keep a written record of recipient and date when loaner keys are issued.
24 sheets per pack provides capacity for 200 entries.
Vault number KCKLRS
  Key Receipt Slips and Plastic Key Receipt Holders
Key Receipt Slips used when a loaner key is issued. Insert a Key Receipt Slip recording the key recipient and date into a Plastic Holder, and hang with the master key. 250 Key Receipt Slips per pack.
Plastic Key Receipt Holders used when a loaner key is issued. Plastic Holder receives a Key Receipt Slip. Holder is hung with the master key.
Item Vault number
Key Receipt Slips KCKRS
Plastic Key Receipt Holders KCPKRH
 Key Collection Envelopes
Manila Envelopes are used when loaner keys are collected to record key control data and hold the actual loaner key.
Envelope size is 5"W X 3"H. Packaged 100 envelopes per pack.
Vault number KCKCE
Specialty Key Boxes
Door-Mounted Key Box
  Box provides a secure solution for the dispensing of keys. Key Box hooks over the top of any door up to 1 13/16" thick and top edge is screwed into top of door so mounting holes are hidden when door is closed. Box is steel with disc tumbler lock and two keys. Dimensions 2 1/2"W X 3 1/4"H X 2"D. Zinc plated finish. Key Box sold individually. Additional and Replacement Keys are available per request.
Vault number KBDM
**Additional Key Systems including Wall, File, and Key Rack including Accessories are available, for details use Contact Us tab on our website or contact Roger Zavodny directly by e-mail at roger@myvaultllc.com or by phone at 440-346-4593.
|
|  |
|
